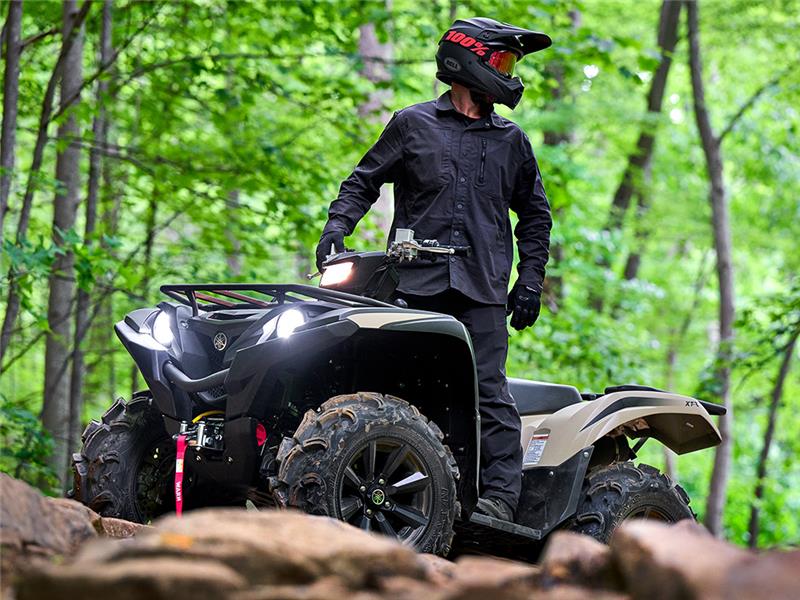

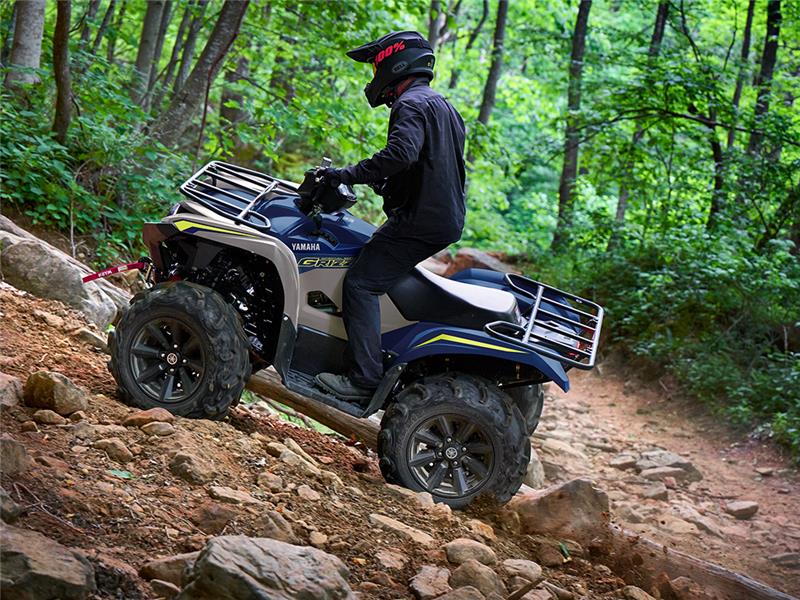

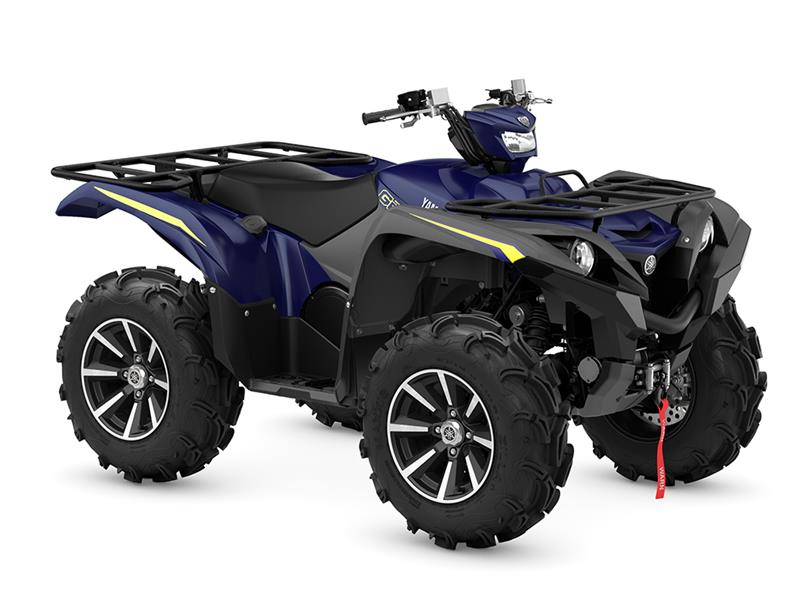

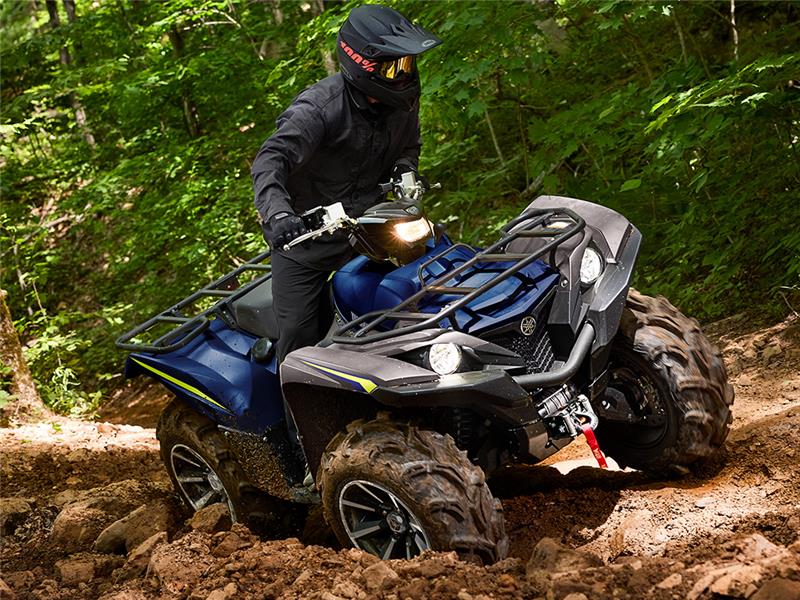

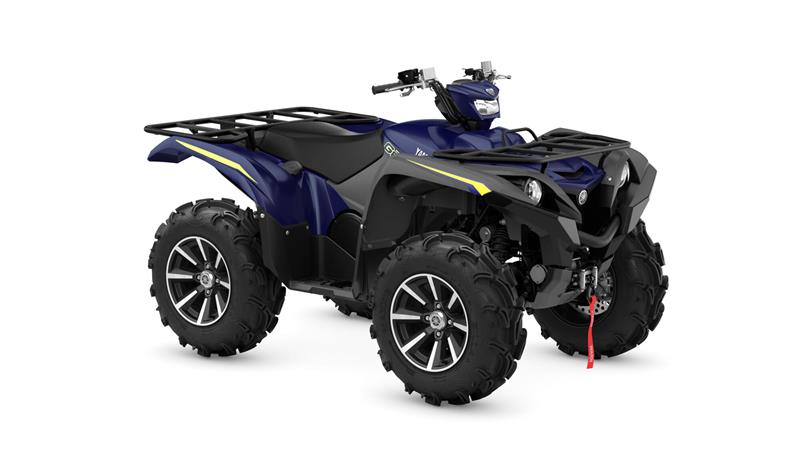

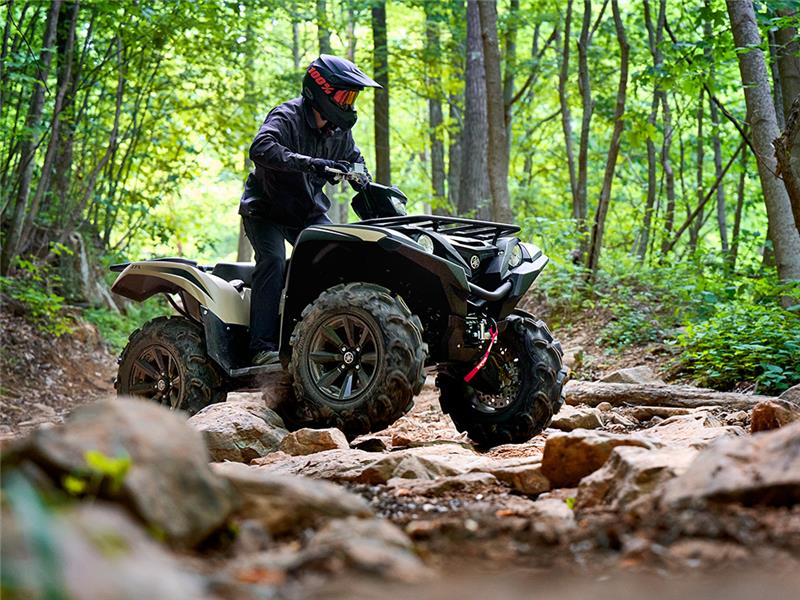

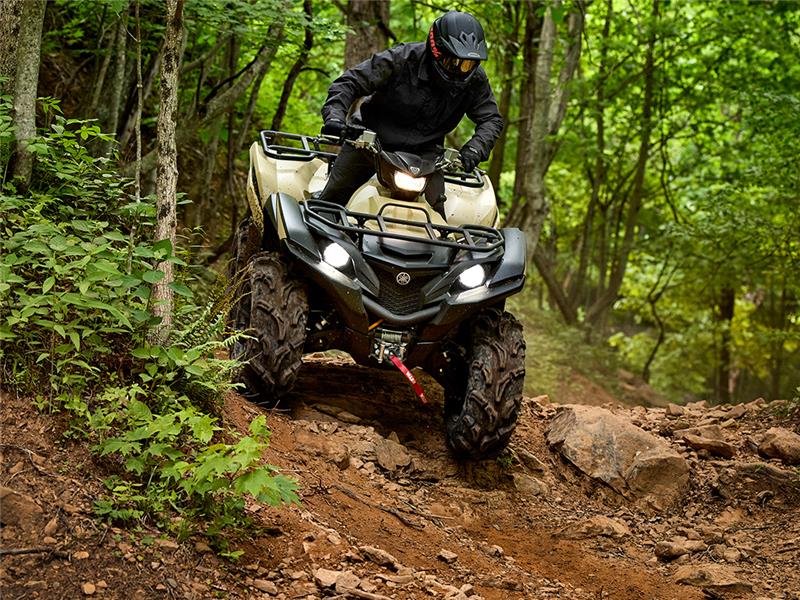

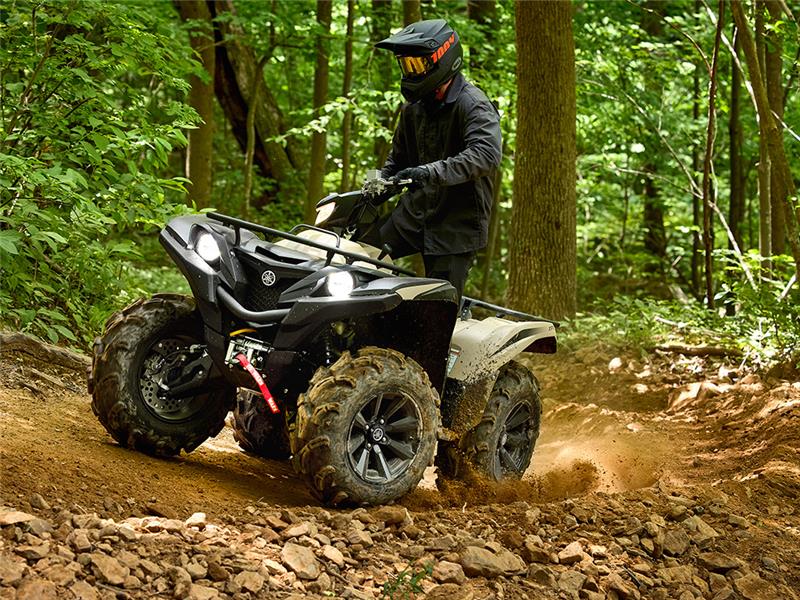

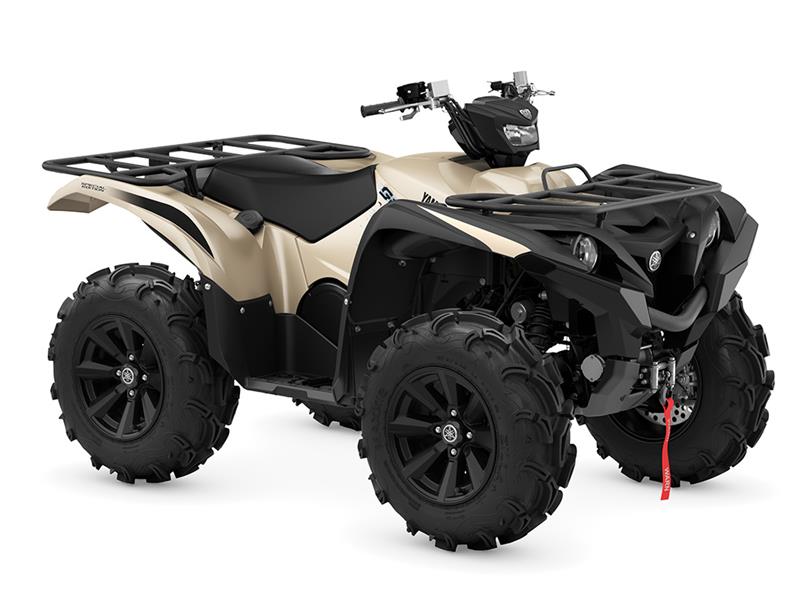

A veritable force of nature, the legendary Grizzly is a sturdy, compact off-roader with a great array of features to give you the freedom to explore in the most challenging environments. Whether on the trail, in the woods or traversing hills, the versatile Grizzly with its gutsy MKII 686cc engine and rugged chassis will be your trustworthy travelling companion.
To request more details about this ATV, simply enter your details below and one of our experienced sales team will get back to you.
Your enquiry has been recieved by a member of the Stirling's Powersports team and they will get back to you within 24 hours.
×To request a testride for the Yamaha 2023 Grizzly 700 EPS SE, simply enter your details below and one of our experienced sales team will get back to you.
Your enquiry has been recieved by a member of the Stirling's Powersports team and they will get back to you within 24 hours
×Enter the details of your current ATV in the fields below and one of our team will contact you to discuss part exchange options, please be as accurate as possible.
Your enquiry has been recieved by a member of the Stirling's Powersports team and they will get back to you within 24 hours.
×Engine
Engine Type
Single Cylinder, Liquid-cooled, 4-stroke, SOHC, 4 Valves
Fuel System
Electronic Fuel Injection
Starter System
Electric Start
Displacement
686 cc
Bore x stroke
102.0 mm x 84.0 mm
Compression Ratio
10.0 : 1
Lubrication System
Wet sump
Ignition System
TCI
Drive system
On-Command® 2WD, 4WD, 4WD with Diff-lock
Final transmission
Shaft
Frame
Front suspension system
Independent Double Wishbone, 193mm wheel travel, 5 position preload adjustment
Rear suspension system
Independent Double Wishbone, 232mm wheel travel, 5 position preload adjustment
Front brake
Dual ventilated hydraulic disc
Rear brake
Left hand/right foot operation, Ventilated hydraulic disc
Front tyres
Maxxis 27" Zilla tires 27 x 10-4, Aluminium SE Wheel
Rear tyres
Maxxis 27" Zilla tires 27 x 10-4, Aluminium SE Wheels
Performance
Front rack
50Kg
Rear rack
90Kg
Dimensions
Overall length
2,070 mm
Overall width
1,230 mm
Overall height
1,253 mm
Seat height
860mm
Wheelbase
1,253 mm
Minimum ground clearance
300mm
Min. turning radius
3.5m
Fuel tank capacity
18 Litres
Oil tank capacity
2.6 Litres
